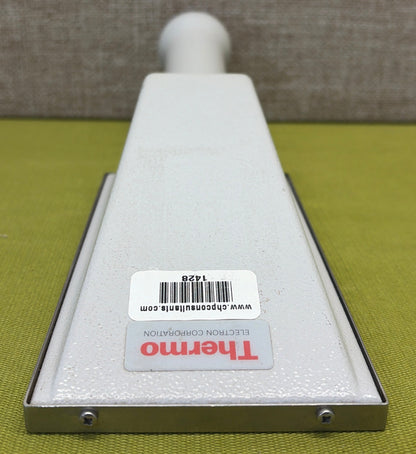

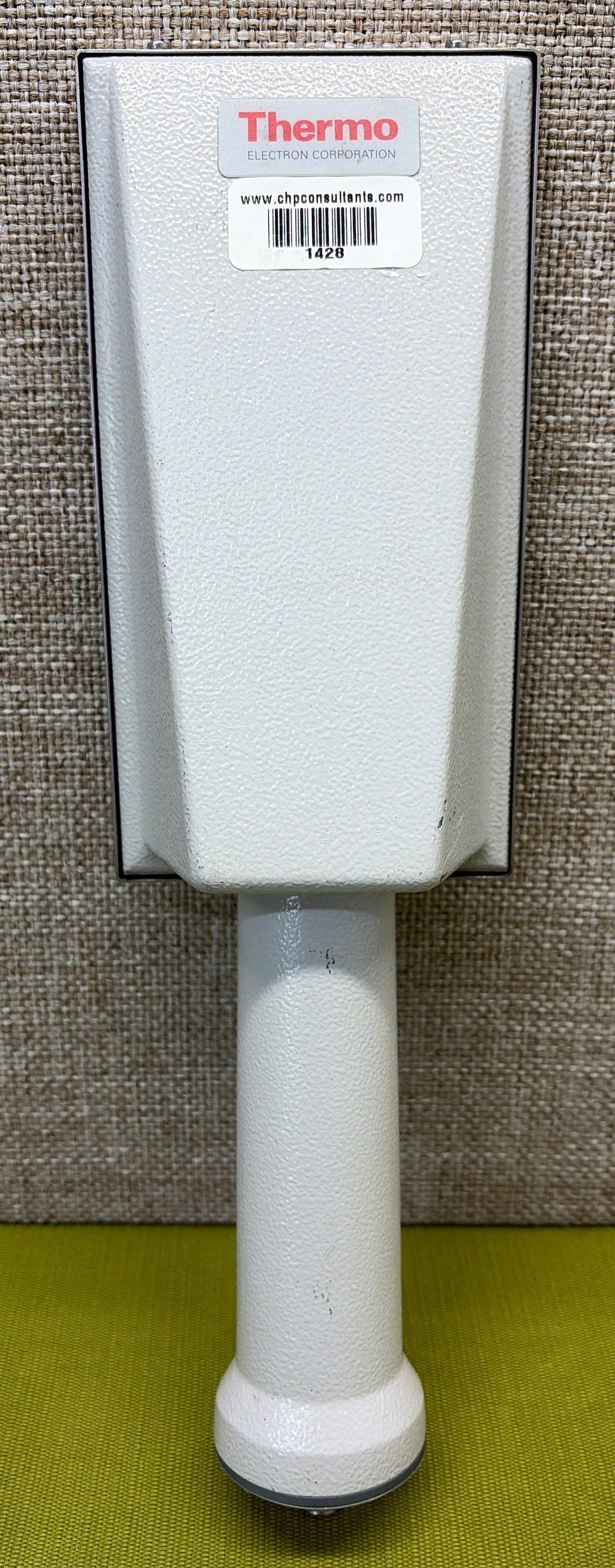

Thermo Electron Corporation DP6DD — Large-Area Alpha/Beta Dual Phosphor Scintillation Probe

Originally designed by NE Technologies and carried forward through Thermo Electron Corporation, the DP6DD is a field-proven, large-area alpha/beta scintillation probe widely used in nuclear power facilities, radiological laboratories, and health physics programs worldwide.

The DP6DD features a dual phosphor ZnS/BC400 scintillation detector housed in a durable light alloy body with an extra-reinforced window frame — the defining feature of the "DD" variant — making it especially well-suited for demanding field environments where probe durability is critical.

Key Features:

• Dual phosphor (ZnS/BC400) scintillation detector for simultaneous alpha and beta discrimination

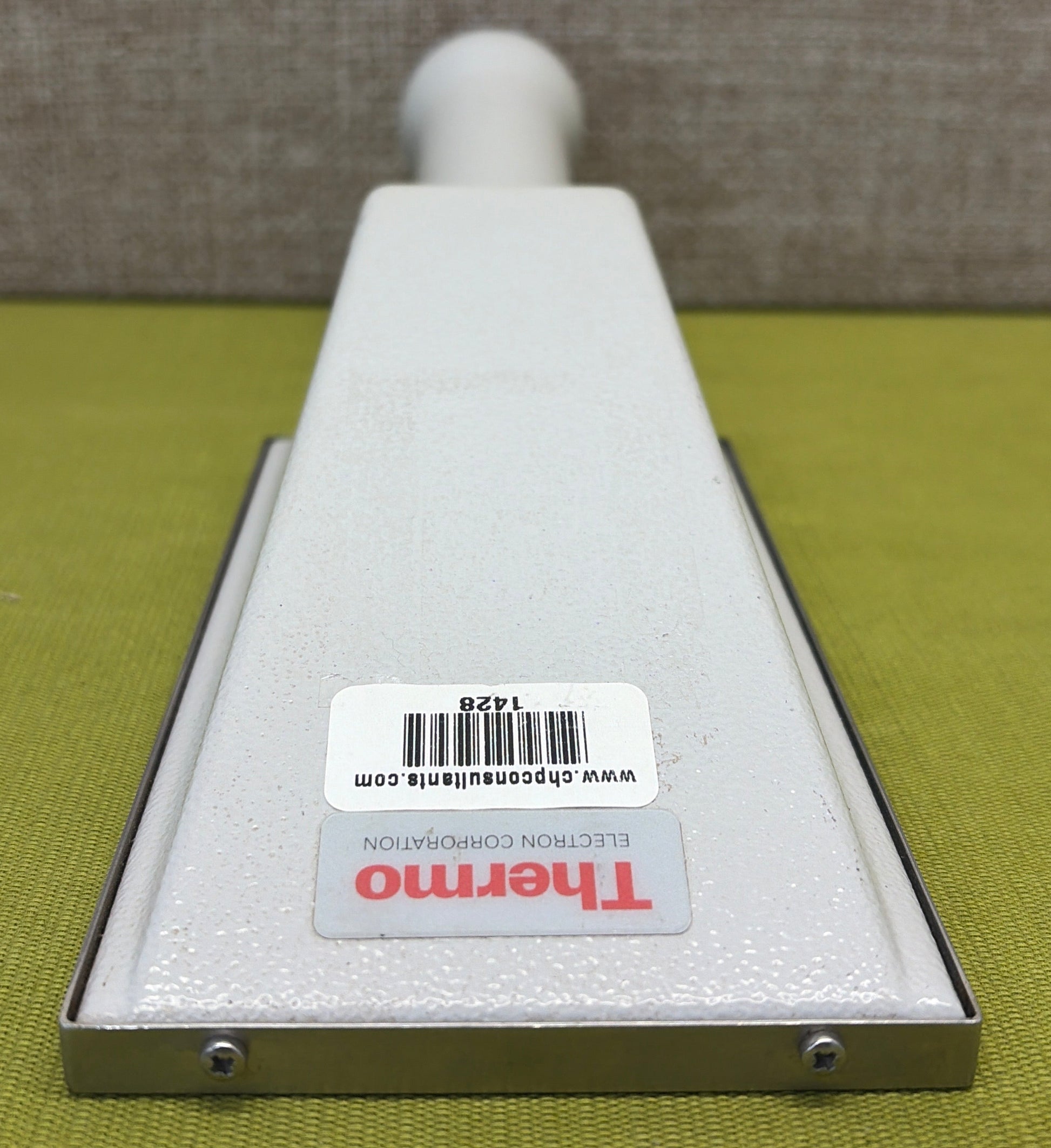

• Extra-reinforced window frame for added durability in field use
• Large 100 cm² active window area for fast, efficient surface surveys
• Field-replaceable detector window for reduced downtime

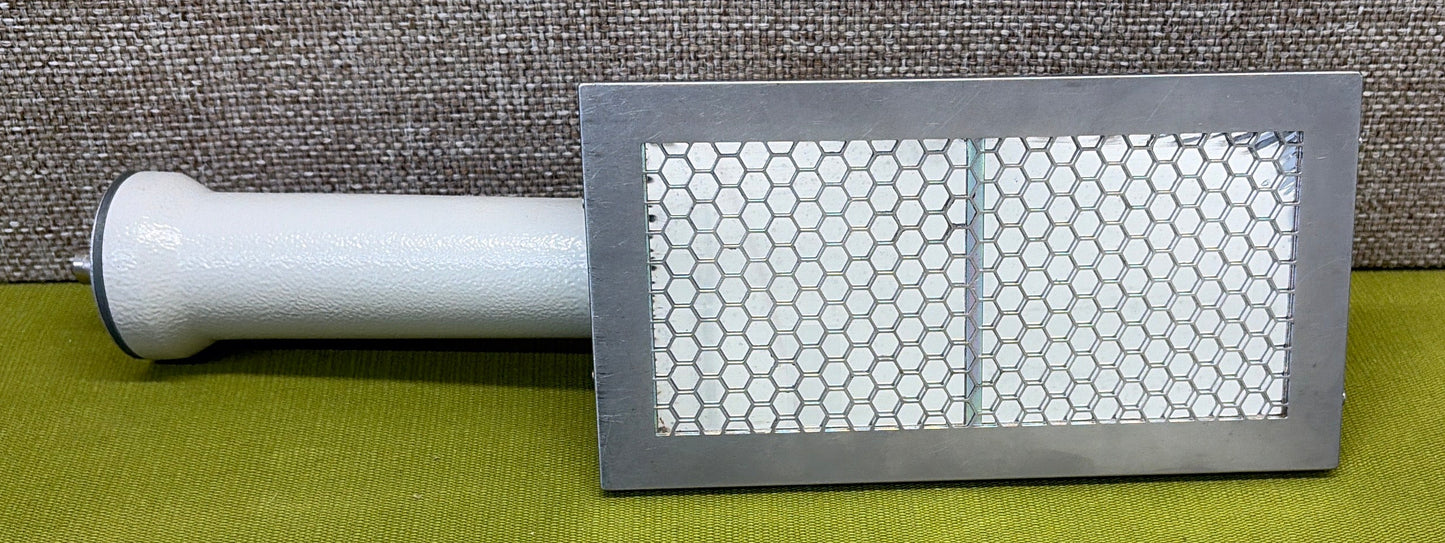

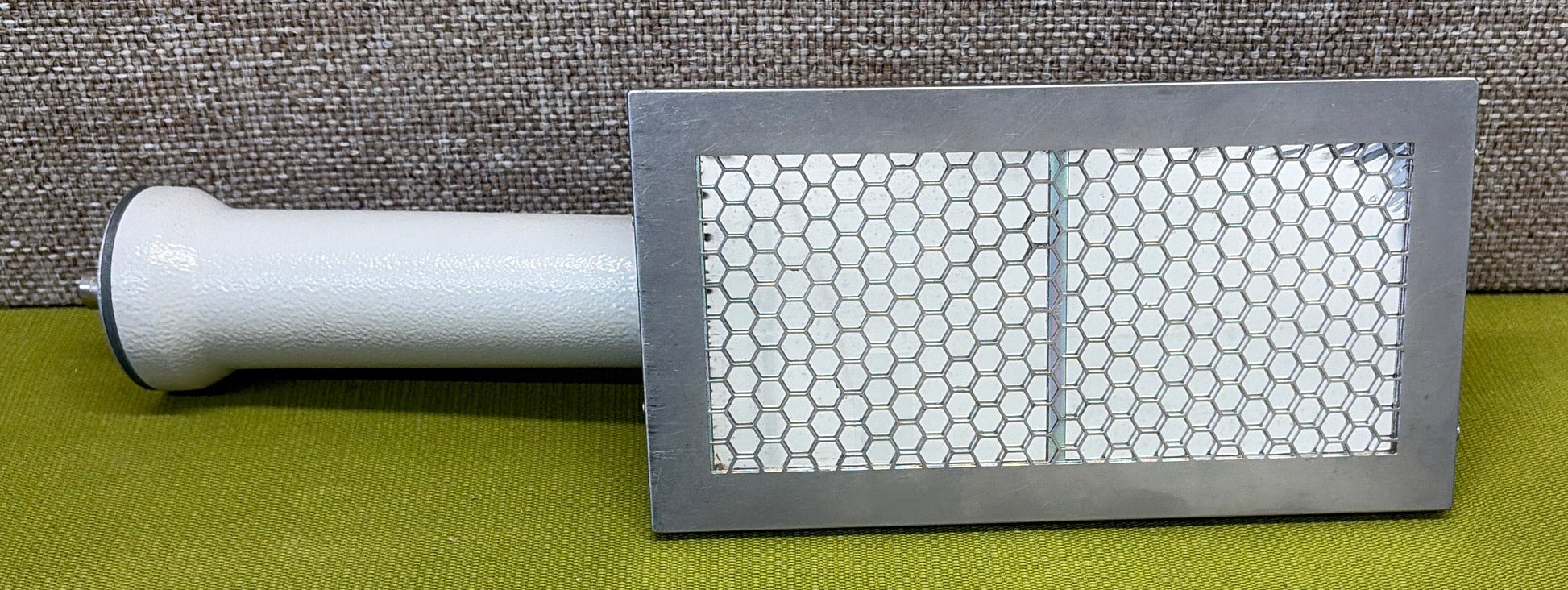

• Durable hex grille for window protection

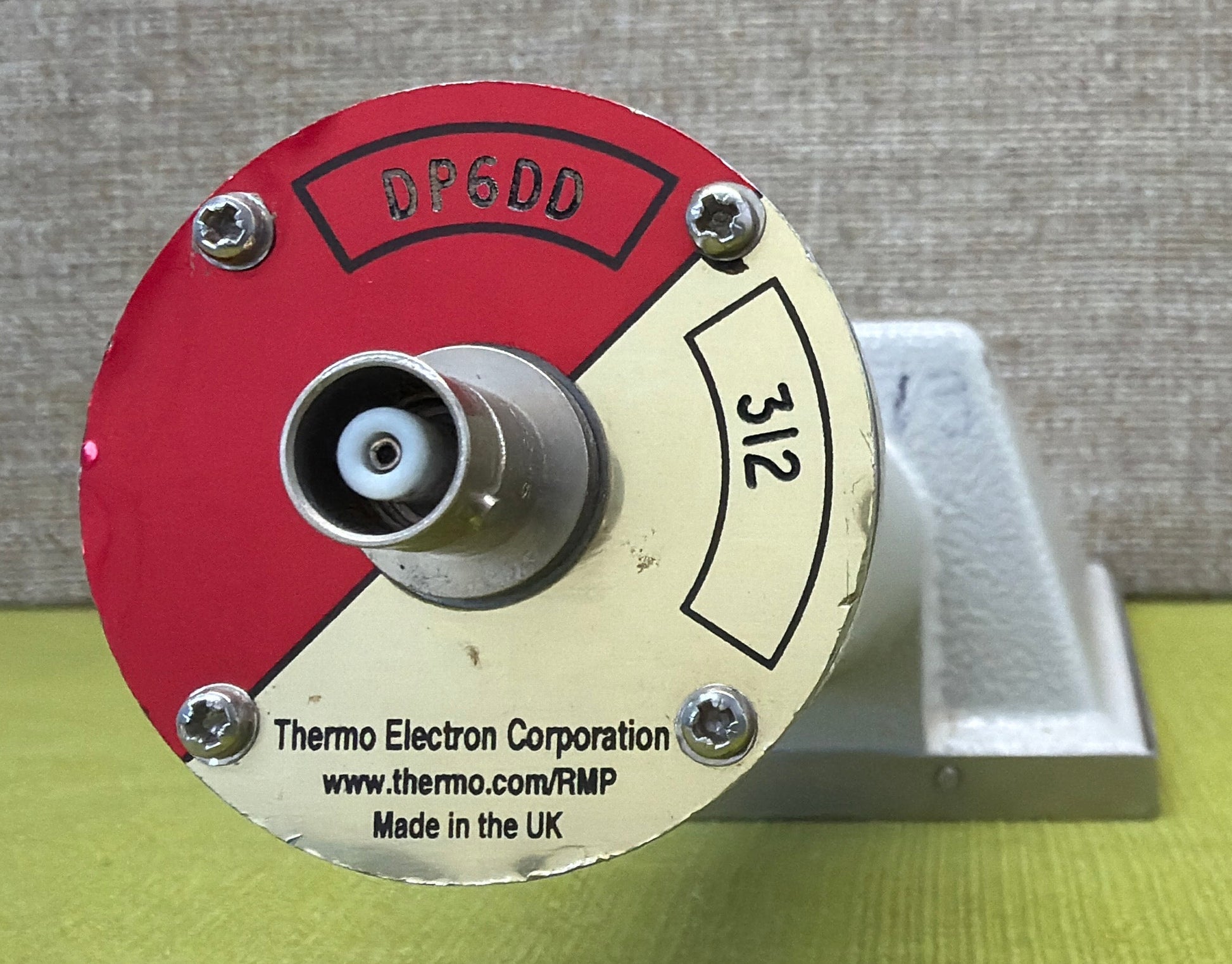

• MHV connector

Specifications:

• Detector Type: Dual phosphor scintillation (ZnS/BC400)
• Active Window Area: 100 cm²
• Connector: MHV
• Weight: ~0.5 kg (1.1 lb)
• Background: <10 cps / <600 cpm
• Detection Efficiency:
  • Alpha: ~33% (²⁴¹Am)
  • Beta: ~18% (⁶⁰Co) / ~38% (³⁶Cl) / ~41% (⁹⁰Sr/⁹⁰Y)

Compatible Survey Meters: Thermo Scientific/Thermo Electron Electra, Delta, ASP-2, E-600, RM-25, and other compatible ratemeters. Can upgrade from a GM probe without replacing the ratemeter.

Recommended Applications:

• Personnel frisking and contamination surveys
• Tool and equipment monitoring
• Work area surveys
• Nuclear power plant health physics programs

Brand Note: This unit was manufactured under the Thermo Electron Corporation brand — the predecessor to Thermo Scientific (Thermo Fisher Scientific). It is functionally identical to units sold under the NE Technologies and Thermo Scientific labels and is fully cross-compatible with those instruments.
