Thermo LFM-3 Radiation Detection System

The Thermo Scientific LFM-3 is a rugged, multi-purpose gamma and X-ray detection system designed for solid waste, transfer stations, waste-to-energy plants, recycling facilities, hospitals, and research.

Thermo LFM-3 Radiation Detection System:

LFM-3 Radiation Monitoring System includes 6020 controller, 2 detectors and 200 ft. connecting cables to each detector.

Includes a Pelican 1640 case.

Specs:

• Robust, ruggedized NaI(Tl) scintillation detectors (50.8 mm / 2 in diameter) in weatherproof PVC housings
• Two shielded detectors with 200 ft (60 m) of cable each (max 3,300 ft / 1,000 m)

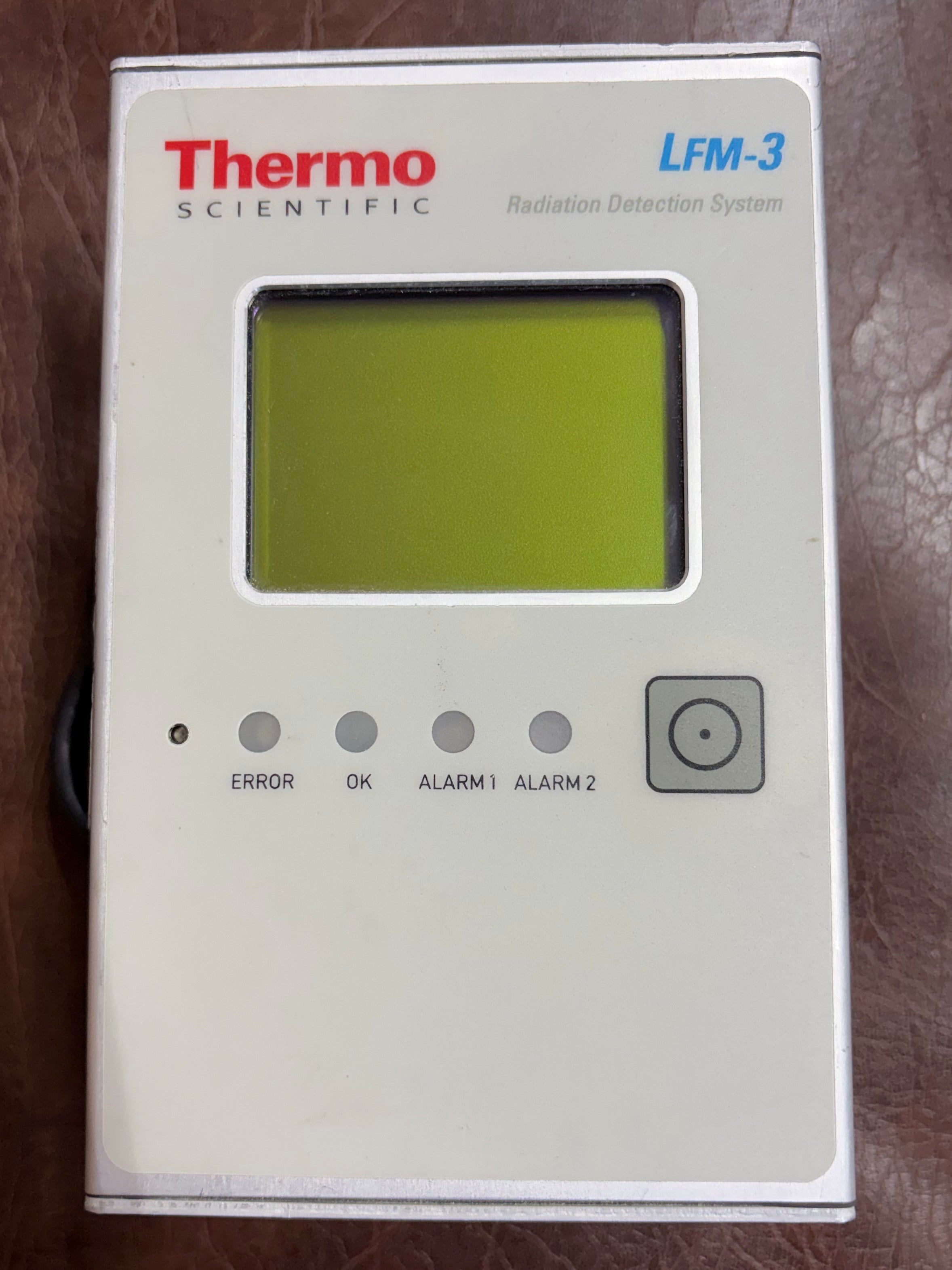

• High-performance FHT‑6020 controller with single-button operation
• Automated natural background compensation for quick setup
• Low, medium, and high energy channels for gamma/X-ray discrimination
• Large 128×64 pixel LCD display and status LEDs
• Audible alarm at 85 dB(A) at 11.8 in (30 cm)
• Interfaces: RS‑232 (9,600/19,200 bps), RS‑485 for both detectors and optional alarm tower

·         Displayable range: 0 – 999,999 cps

·         Operating temperature: 32 °F to 1,220 °F (0 °C to 500 °C)

·         Power: 85 V–264 VAC (nominal 115–230 VAC), 47–400 Hz; max input current 550 mA (115 VAC) or 330 mA (230 VAC)

·         Size: 6.5″ × 5.11″ × 2″ (165 mm × 130 mm × 51 mm)

·         Weight: 2.9 lbs (1.3 kg)

·         Construction: Extruded aluminum housing

• Radiation detected: Low, medium, and high energy gammas and X-rays (>20 keV)
• Sensitivity: Optimized for gamma detection with minimal nuisance alarms
• Housing: Low-mass for energy discrimination; weatherproof

Applications

• Solid waste facilities
• Transfer stations
• Waste-to-energy plants
• Recycling facilities
• Hospitals (nuclear medicine, housekeeping)
• Healthcare and research
